The MM-K Stirling engine kit is a ready to assemble engine that will run on the heat of your hand. We also sell a ready to run Stirling engine that will run on the heat of your hand.

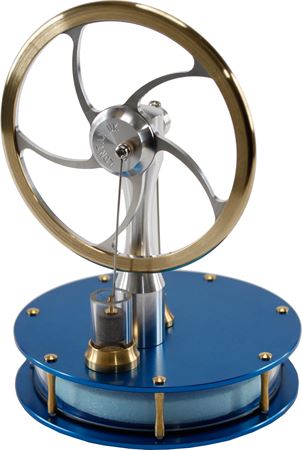

MM-K Stirling Engine Kit

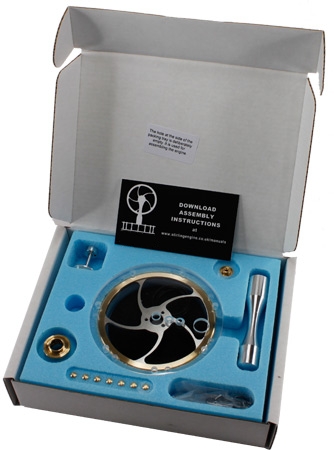

The kit arrives in a custom foam insert. This ensures that all the parts are safe and secure while in transit. It also doubles as an assembly aid, holding the engine still during assembly.

The PDF instructions provide a detailed step by step process for building your MM-K Stirling engine. The instructions include high-quality images showing the complete assembly process along with full parts list and detailed written instructions. Assembly should take no more than 30 minutes. All you need is a small philips screwdrive (the Pozidrive brand is good) and a small flat head screwdriver.

• Plates made from anodized blue aluminum
• Runs with direct sunlight
• Ultra Low-temperature difference Stirling engine

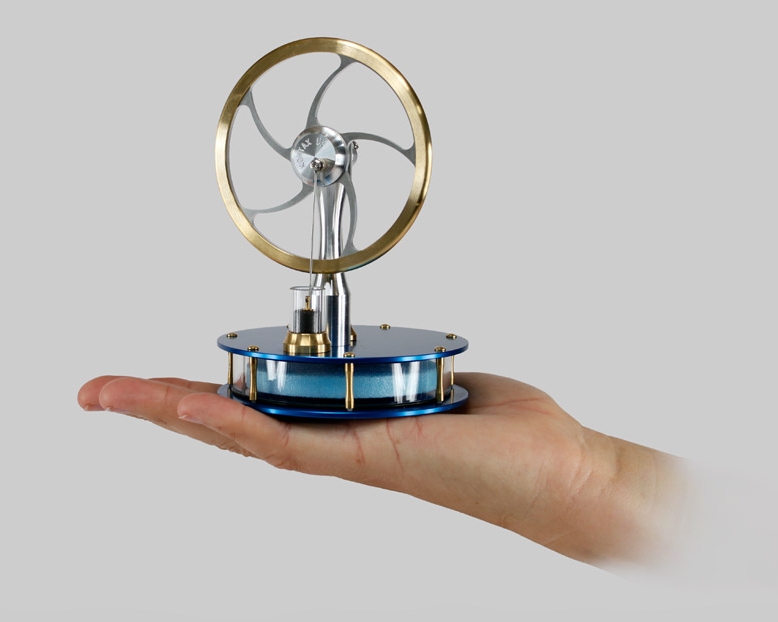

• Can run from the heat of your hand
• Runs on heat sources such as common electronics or a cup of coffee
• Will even run on ice
• Runs on surprisingly little temperature difference

ENGINE DETAILS

• Airtight seals made with high strength precision screw threads and nitrile O rings
• Stainless steel screws
• Micron precision Borosilicate glass cylinder and Graphite power piston
• Low-profile heat insulated chamber pillars, giving a flat bottom and good surface contact with the heat source
• Both connecting rods are positively located using low friction PEEK and stainless steel screws
• All airtight seals are made with high strength precision screw threads and nitrile O rings
• Ultra low friction demagnetized and de-greased bearings, NO lubrication required
• Fully CNC machined, giving crisp, clean and tidy edges all over
• Engine parts ultrasonically cleaned before hand assembly

• Stainless steel connecting rods and ball-race bearings
• Micron precision Borosilicate glass cylinder
• Micron precision Graphite power piston
• Aluminum main pillar, hub and spokes
• Brass chamber pillars and flywheel rim
• Brass gland and cylinder holder

• Base plates – 3.62″ diameter (92mm), 2mm thick
• Displacer – 2.75″ diameter (70mm), 8mm thick
• Flywheel – 3.25″ diameter(82mm), 4mm thick
• Power piston – 0.375″ diameter (9.5mm)
• Overall height – 4.92″ (125mm)

Low Friction

• EXTREMELY LOW FRICTION GRAPHITE PISTON
• INGENIOUS SELF-LUBRICATING PISTON
• PROVEN GLASS/GRAPHITE COMBINATION
• PRECISION CLEAR BOROSILICATE GLASS CYLINDER
• ULTRA LOW FRICTION THROUGHOUT

Balanced

• FULLY MACHINED BRASS + ALUMINUM WHEEL
• INTEGRAL FLYWHEEL BALANCING

Micron Precision

• ULTRA LOW-TEMPERATURE DIFFERENCE ENGINE
• BEST PERFORMING LTD ENGINE ON THE MARKET
• RUNS ON A WARM HAND OR HOT WATER
• RUNS BACKWARDS WHEN PLACED ON ICE

Thermodynamics

• SUPER-FLAT OPTIMISED CHAMBER
• ALL DIMENSIONS CALCULATED FOR OPTIMUM PERFORMANCE
• HOLLOW BRASS PILLARS, PROVIDING A SURPRISING HIGH THERMAL INSULATION
• REGENERATING DISPLACER PISTON

Design

• NO SCREWS PROTRUDING ON TOP/BOTTOM PLATE
• PROVEN LONG LASTING DESIGN
• ELEGANT NO COMPROMISE DESIGN

Performance

• PRECISION STAINLESS STEEL DISPLACER ROD
• MICRONS ACCURACY POWER PISTON
• NO SQUEAKING, QUIET DESIGN
• AIR SEALED DESIGN
• MINIATURE BALL RACE BEARINGS
